Standard Digital Level: DL-BXF


From which ever angle you look at it...

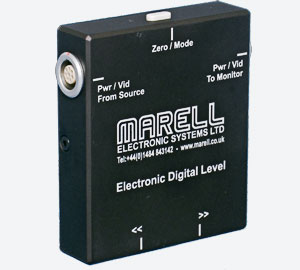

The DL-BXF is an accurate programmable digital level. This level has been designed to be positioned practically anywhere on body mounted camera stabilisation systems, cranes, and heads.

The DL-BXF is just 62mm wide, 72mm high and 16mm deep and weighs less than 100 grams. No other level packs so many features into such a small box.

  • Single horizontal bubble
  • Bubble can be positioned anywhere on the screen.
  • Bubble style: 4 types, adjustable brightness and transparency.
  • Bubble border: adjustable brightness and transparency.
  • Sensitivity and response: slow to fast, freely adjustable to suit - range from 0 deg to 90 deg.

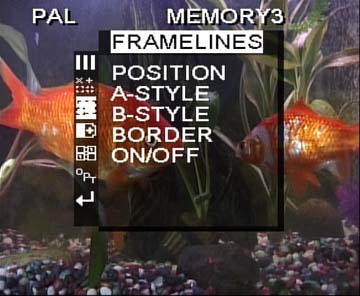

  • Single frameline: Settings allow you to change the position, transparency, width and brightness of the black and white zebra, you can even alter the length of the segments of the frame lines, fade them or turn them on or off.
  • Border mask: adjustable for brightness and transparency.

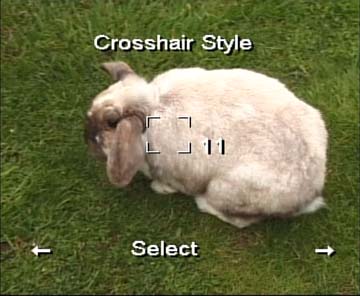

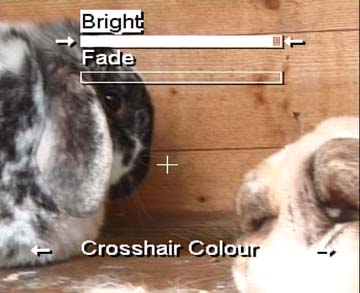

  • Crosshair: 7 different styles in 2 modes giving 14 crosshair selections in total. Scaleable, with adjustable transparency and intensity, crosshairs can be position anywhere on the screen.

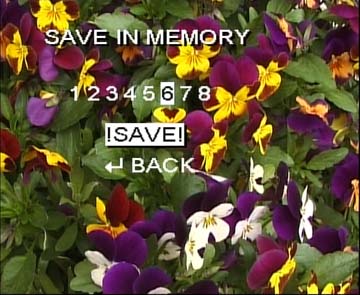

  • Memories: custom setting pages to store the settings for eight different cameras, eight in PAL and eight in NTSC. 
  • Mounting position: any of 8 planar orientations.
  • Optional video distribution amplifier: up to 2 additional vdeo outputs with or without the OSD,on 4pin (HR10-Hirose) connectors.
  • As an optional extra, 8 pin Lemo cables can be included to suit your set-up.
  • ...the level choice

    If you want to know exactly where you are, the Marell Electronic Level is indispensable!

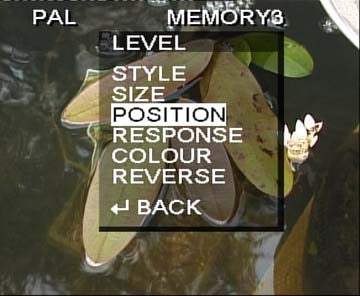

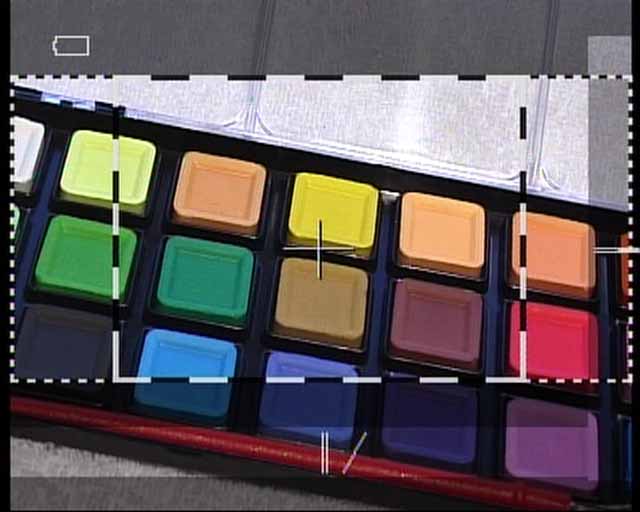

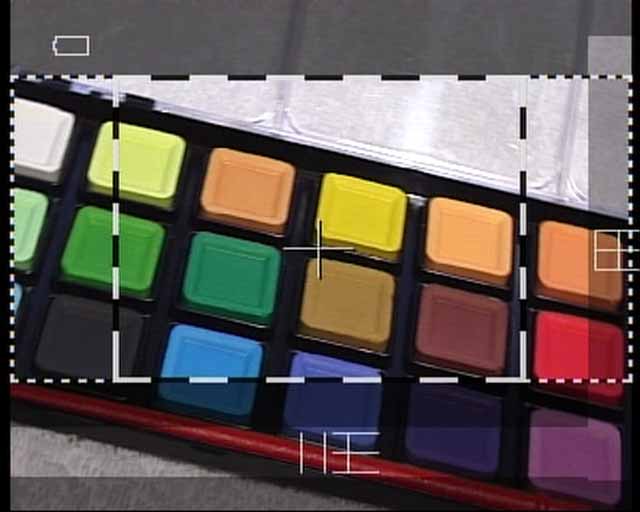

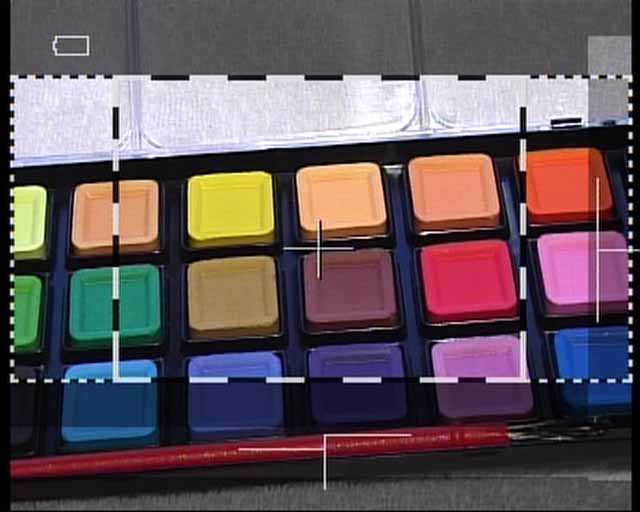

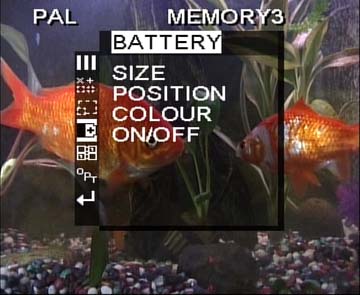

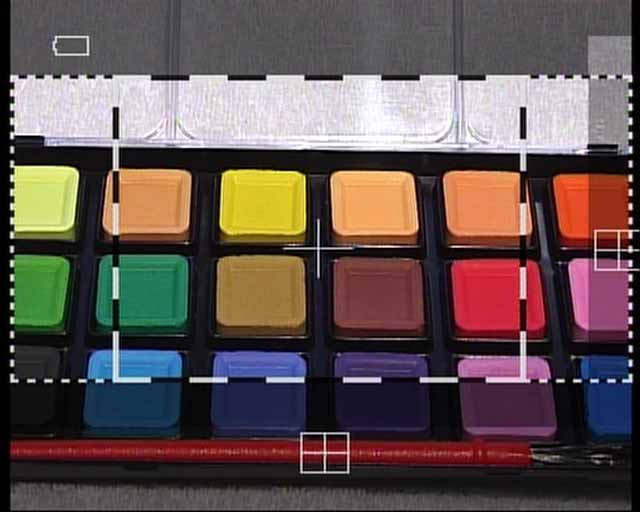

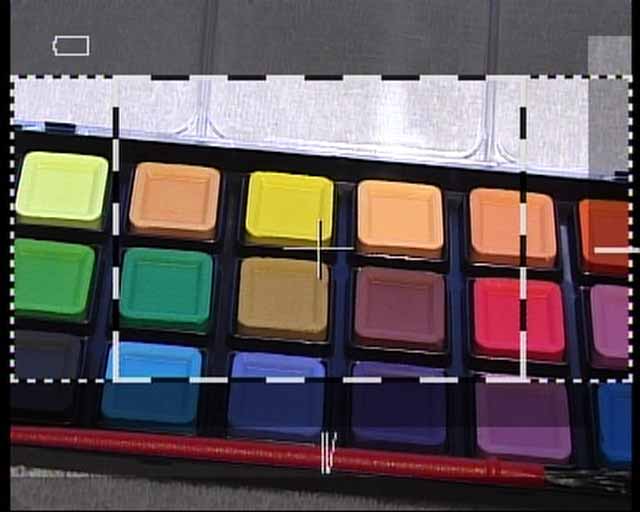

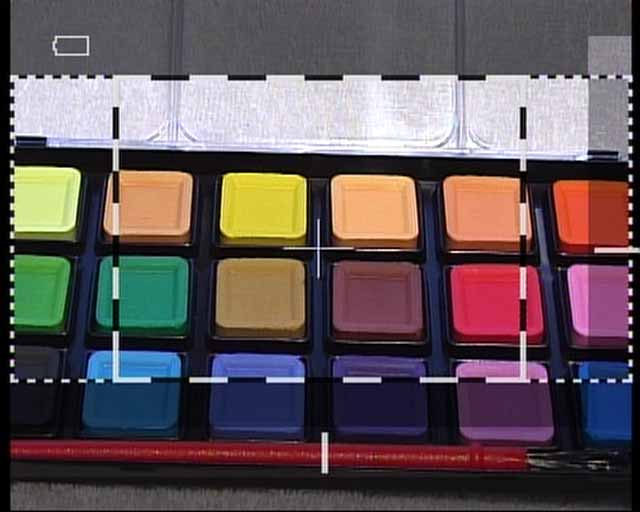

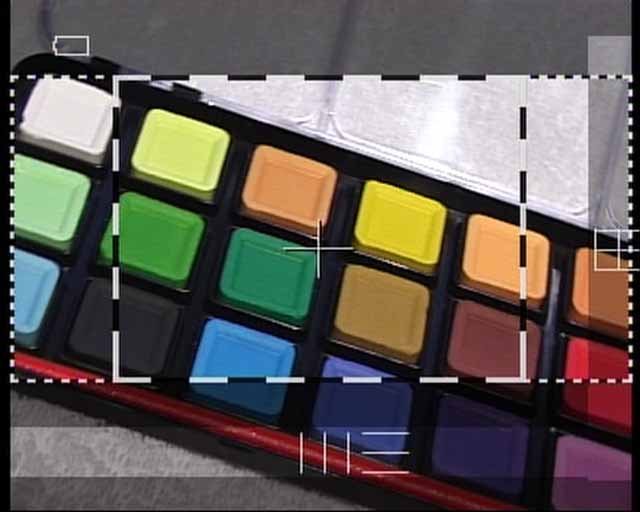

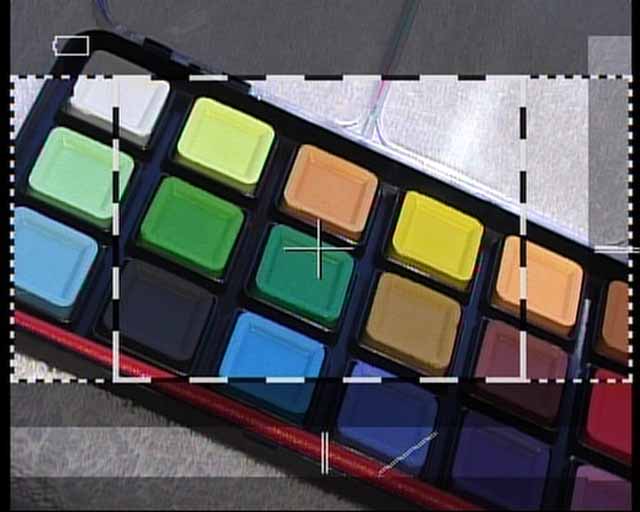

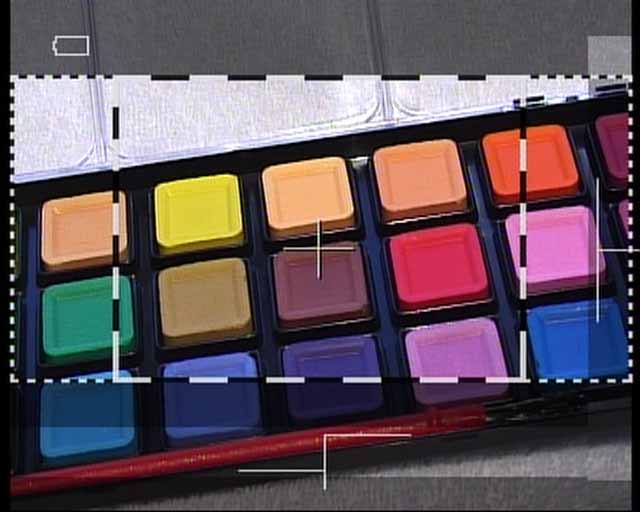

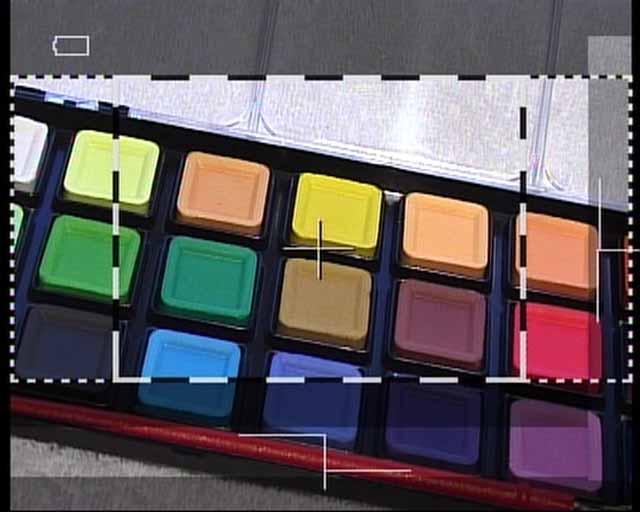

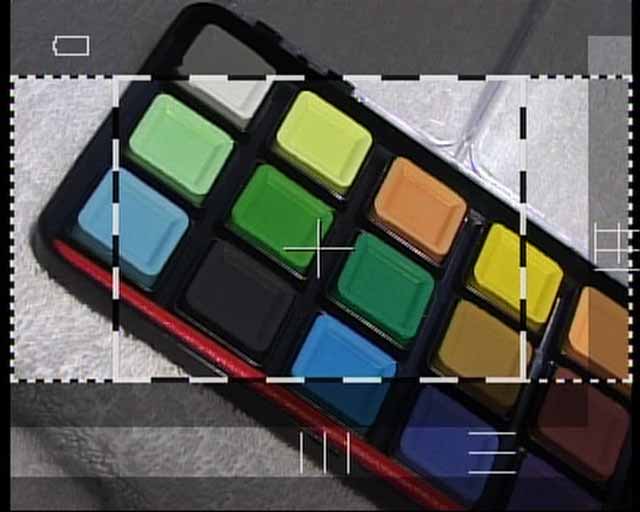

    *PLEASE NOTE* - SCREEN SHOTS BELOW SHOW THE ADVANCED DIGITAL LEVEL - THE DL-BXF LEVEL FEATURES A SINGLE FRAMELINE,  SINGLE LEVEL AND CROSSHAIR ONLY
